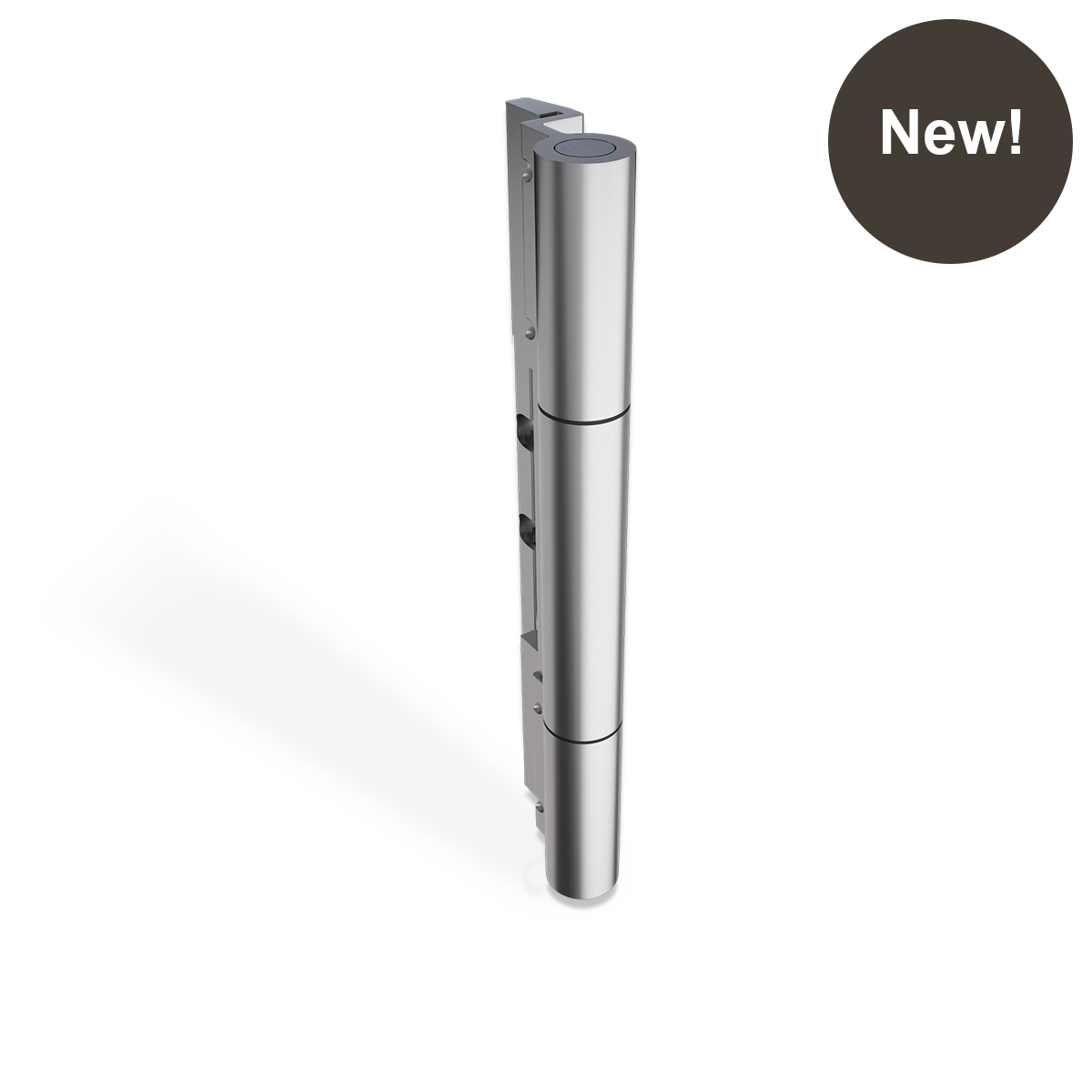

Rollenband AT
- 认证: · CE - 认证 EN1935:2002,14级合页
- 可用于几乎所有常见的铝合金系统
- 调节后合页轴外观不变
- 轴径20mm
- 不锈钢制成的一体式轴承
新型柱式合页AT是一种合页系统,可以适应所有常见的型材系统。 其 20 毫米的轴径可以满足业主和建筑师的高端设计要求,即他们的户门和商业项目上的合页外观尽可能美观。 它可在六个方向上进行调节。 合页的调节在内部,即使进行极端调节,优雅的柱式外观也不会发生偏移。预组装的合页可以快速且简便地安装。
一体式不锈钢轴承确保高稳定性。 这种设计方式使得即使门楣过低,门扇也可以轻松拆卸。由优质特殊材料制成的轴承套几乎没有磨损,即使门扇重量大和开启频率非常高,也不需要设施管理人员进行任何维护。
柱式合页AT是与型材制造商密切合作开发的系统适应性合页。 不同的型材组合需要特定的规格。
因此,为了咨询和订购,有必要提供相关的型材组合文件。
材料
由高强度挤压铝制成
安装方式
直接固定
承重
根据型材规格最大达到 180 kg(3个合页)
调节
门扇在悬挂状态下 6 个方向可以调节:
• 没有轴心偏移,无需拧松固定螺丝进行无极水平调节 ± 1,5 mm。
• 根据安装情况,调节过程可以减少。
• 单人可以垂直调节 ± 2.5 mm。
• 通过旋转轴套可以调节密封压力 ± 0,3 mm。
认证
CE - 认证 EN1935:2002,14级合页
颜色规格
可以提供阳极氧化和 RAL色系所有颜色
Rollenband AT: 4 7 7 1 1 4 1 14
Service class
4
级别 4: 极为强大的使用。门用合页适用频繁激烈的使用
durability
7
>级别 7: 20万次测试周期(只是门合页)
weight of test door
7
级别 7: 检测门承重160 kg
fire resistance
1
级别 1: 适用防火/防烟门 (EN 1634-1)
safty of use
1
确保安全使用的基本要求所有合页能够满足。因而这里只有级别 1。
corrosion resistance
4
4级:240小时盐雾试验
intrusion protection
1
级别 1: 用于防盗门,同时取决于 对各种防盗门的防盗性合页所起的作用进行合理性的评价。
hinge class
14
级别 14: 该级别合页
The classification 4 7 7 0 1 4 1 14 means: A door hinge for (4) very heavy usage, which has undergone endurance testing of (7) 200,000 cycles, for a door with dimensions of up to (7*) 160 kg, not suited for (0) fire and smoke protection, possesses a (4) corrosion resistance of 240 h and can be used on (1) intrusion-resistant doors.
*) In addition to that, testing was conducted based on 20 cycles with 320kg and 5 cycles with 480kg and successfully completed in accordance with EN 1935. The product verifiably withstands a shear load of at least 15.0 kN.
